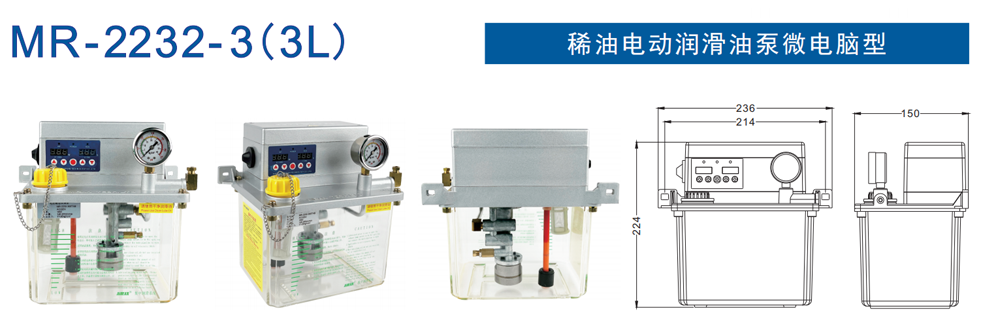

MR-2232-3 (3L)
稀油电动润滑油泵微电脑型 Self-control Oil Lubrication Pump
技术参数Technical Parameters
型号 Model | 电压频率 Voltage | 额定转速 Rated ritary Speed | 功率 Power | 电流 Current(A) | 额定压力 Rated pressure kgf/cm² | 更大压力 Max pressure kgf/cm² | 容积 Volume | 吐出量 Discharge capacity ml/min | 使用油粘度 Rated pressure kgf/cm² | 备注 Remarks |
MR-2232-300TAB | 220V 50/60HZ | 2400 | 18W | 0.12 | 18 | 35 | 3L | 150-200 CC/min | 30-1000 | MR-2231代表 电压110V MR-2232代表 电压220V |
MR-2232-300XAB | 220V 50/60HZ | |||||||||
MR-2232-310XAB | 220V 50/60HZ |
*型号带T为抵抗式，带X为容积式,带A为罩极电机,
*Mode name with " T" is resistant, mode name with “X” is volumetric,mode name with “A” is shade-pole motor
接线图The wiring diagram

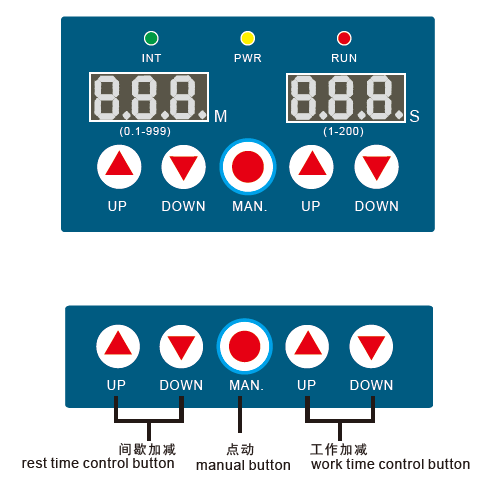

性能与特点Performance Characteristics
1 .加油时间由控制面板右侧的上升（U P延长时间）和下降（D O W N缩短时间）按键设定，最长加油时间可达2 0 0秒，精度为1秒。间歇时间由控制面板左侧的上升（U P延长时间）和下降（D O W N缩短时间）按键设定，间歇时间最长可达9 9 9分钟， 最短为0 . 1分钟， 精度为0 . 1分钟。时间设定时,按一次按键， 跳动数为1，按住按键不放，跳动可以加速， 所有设定在设定完成后或按手动（M a n )按键后，即刻生效。
2 .当油泵显示E R P报警时， 表示压力不足，检查压力正常时， 按一下（M a n )按键，消除报警。
3 .当油泵显示E R O时,表示油量不足，加油后自动消除报警。
4 .按住（M a n )按键不放为点动测试，可一直出油。
（ 可根据客户需要定做专属润滑方案）
1.Fuel supply time is set by the UP button(extending the time) and DOWN button(shortening the time) on the right side of the control panel, which can reach up to 200 seconds, with the precision of 1 second. Intermittent time is set by the UP button(extending the time) and DOWN button(shortening the time) on the left side of the control panel, which can
reach up to 999 minutes, with the precision of 0.1 minute. When setting the time, the beat number is 1 if you press the button once. The beat number can be accelerated if you hold down the button. All the settings will take effect immediately after the setting is completed or after the Man button is pressed.
2.When the oil pump shows the EPR alarm, it indicates that the pressure is insufficient. If the the pressure is normal, press the Man button to eliminate the alarm.
3.When the oil pump shows the ERO alarm, the oil quantity is insufficient,and the alarm will be automatically eliminated after refueling .
4.Holding down the Man button is manual test.
(specific lubrication plan can be customized)
