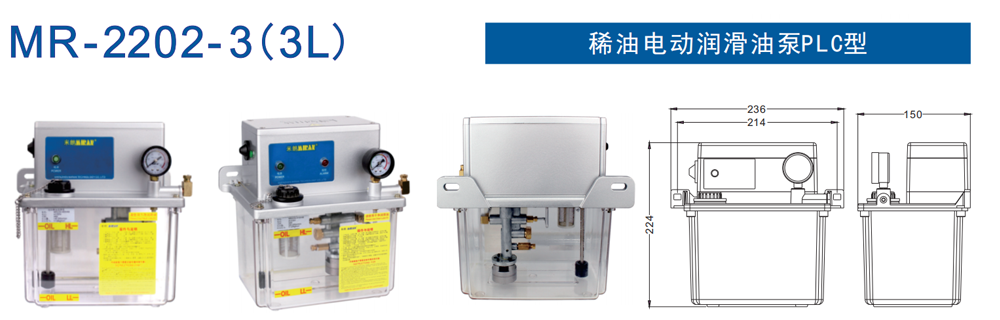

MR-2202-3 (3L)
稀油电动润滑油泵P L C型 Oil Lubrication Pump Controlled by PLC Type
技术参数Technical Parameters
型号 Model | 电压频率 Voltage | 额定转速 Rated ritary Speed | 功率 Power | 电流 Current(A) | 额定压力 Rated pressure kgf/cm² | 更大压力 Max pressure kgf/cm² | 容积 Volume | 吐出量 Discharge capacity ml/min | 使用油粘度 Rated pressure kgf/cm² | 备注 Remarks |
MR-2202-300TA | 220V 50/60HZ | 2400 | 18W | 0.12 | 18 | 35 | 3L | 150-200 CC/min | 30-1000 | MR-2231代表 电压110V MR-2232代表 电压220V |
MR-2202-300XA | 220V 50/60HZ | |||||||||
MR-2202-310XA | 220V 50/60HZ |

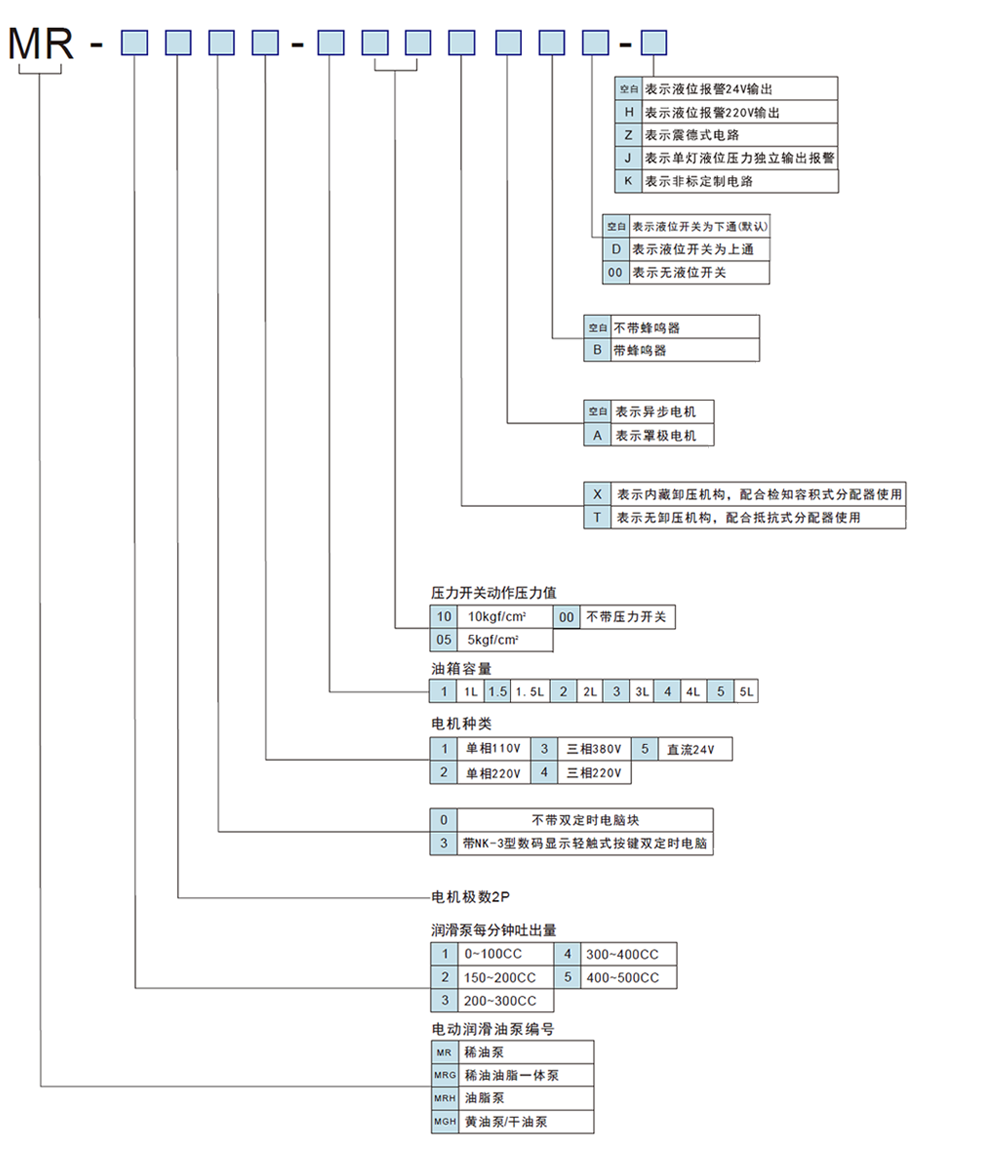

*型号带T为抵抗式，带X为容积式,带A为罩极电机,
*Mode name with " T" is resistant, mode name with “X” is volumetric,mode name with “A” is s h a d e - p o l e m o t o r
性能与特点Performance Characteristics
1 .供油和间歇时间同主机电脑控制设定。
2 .油箱容量有2、3、4、5升等，吐出量150-200CC/min，油箱有目视油位计和自动控油装置，当油量不足时，红灯亮，提醒加油。
3 .油泵里面内设两个阀（一个调压阀，一个缷压阀）
4 .可根据客户需求定制专属金属油箱
（可根据客户需要定做专属润滑方案）
1.Oil supply and intermittent time are adjustable by PC controller.
2.With the out of oil 200~300CC/min, the oil tank capacity has 2, 3 and 4 litre, etc.
There are oil level gauge and automatic oil control device on the oil tank.
The red light is on when the oil quantity is insufficient, which reminds you to fill it up.

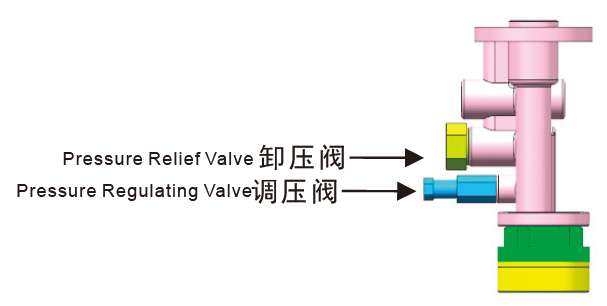

3.There are two valves in the oil pump, pressure regulating valve and unloading valve. (refer to figure 1-3)
4.Metal oil tank can be customized.
(specific lubrication plan can be customized)

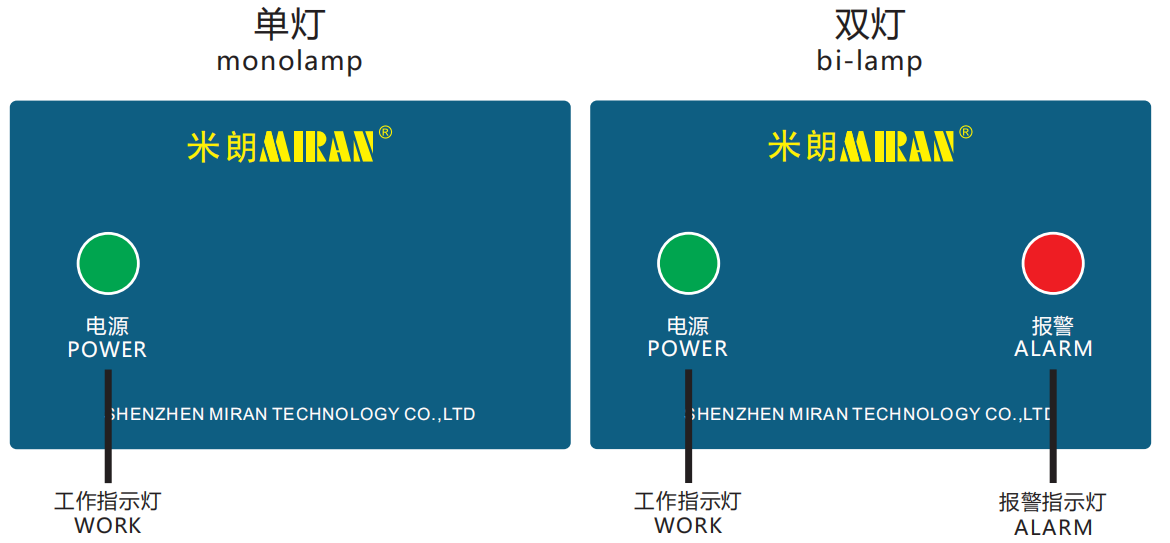

面板图 The control panel

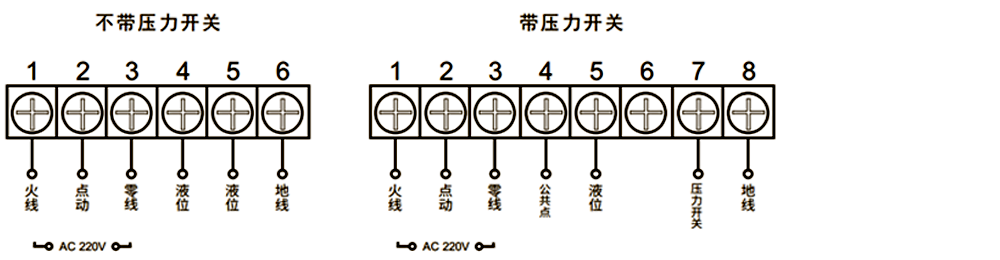

接线图The wiring diagram
