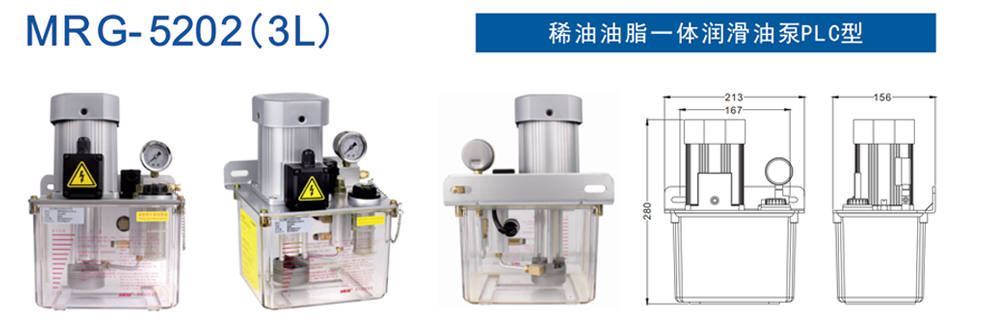

MRG-5202(3L)
稀油油脂一体润滑油泵PLC型 Automatic Grease and Thin Oil Lubrication Pump with PLC Type
技术参数Technical Parameters
型号 Model | 电压频率 Voltage | 额定转速 Rated ritary Speed | 功率 Power | 电流 Current(A) | 额定压力 Rated pressure kgf/cm² | 更大压力 Max pressure kgf/cm² | 容积 Volume | 吐出量 Discharge capacity ml/min | 使用油粘度 Rated pressure kgf/cm² | 备注 Remarks |
MRG-5202-300T | 220V 50/60HZ | 2800 | 60W 220V 90W 380V | 60W:0.45 90W:0.32 | 20 | 50 | 3L | 300-500CC/min | 30#稀油~00#油脂 | MRG-5202代表 电压220V MRG-5203代表 电压380V |
MRG-5202-300X | 220V 50/60HZ | |||||||||
MRG-5202-310X | 220V 50/60HZ |
*型号带T为抵抗式，带X为容积式，不带" A"为异步电机
*Mode name with " T" is resistant, mode name with “X” is volumetric,without A is asynchronous motor
性能与特点Performance Characteristics
1 .使用全新稀油或0 0 #油脂，禁止使用0 #及浓油脂。
2 .禁止使用旧油，否则容易造成油路堵塞，机械零件磨损，影响油泵运行。
3 .适用于抵抗式，加压式或递进式黄油分配器配套使用。
4 .禁止无油启动，以免损坏电机。
5 .齿轮泵上的吊座有一个调压阀体，可调整压力。
6 .可根据客户需求定制专属金属油箱。
（可根据客户需要定做专属润滑方案）
1. Using new thin oil or 00 # grease, prohibit to use 0 # and concentrated grease.
2. It is forbidden to use old oil, otherwise it will cause oil road blockage, mechanical parts wear and affect the operation of the
oil pump.
3. Suitable for resistive, pressurized or progressive butter dispensers.
4. Do not start without oil so as not to damage the motor.
5. The suspension seat on the gear pump has a pressure regulator body to adjust the pressure.
6. Metal tanks can be customized according to customer needs.
( The lubrication program Can be customized)
